The appearance of 380kg.cm

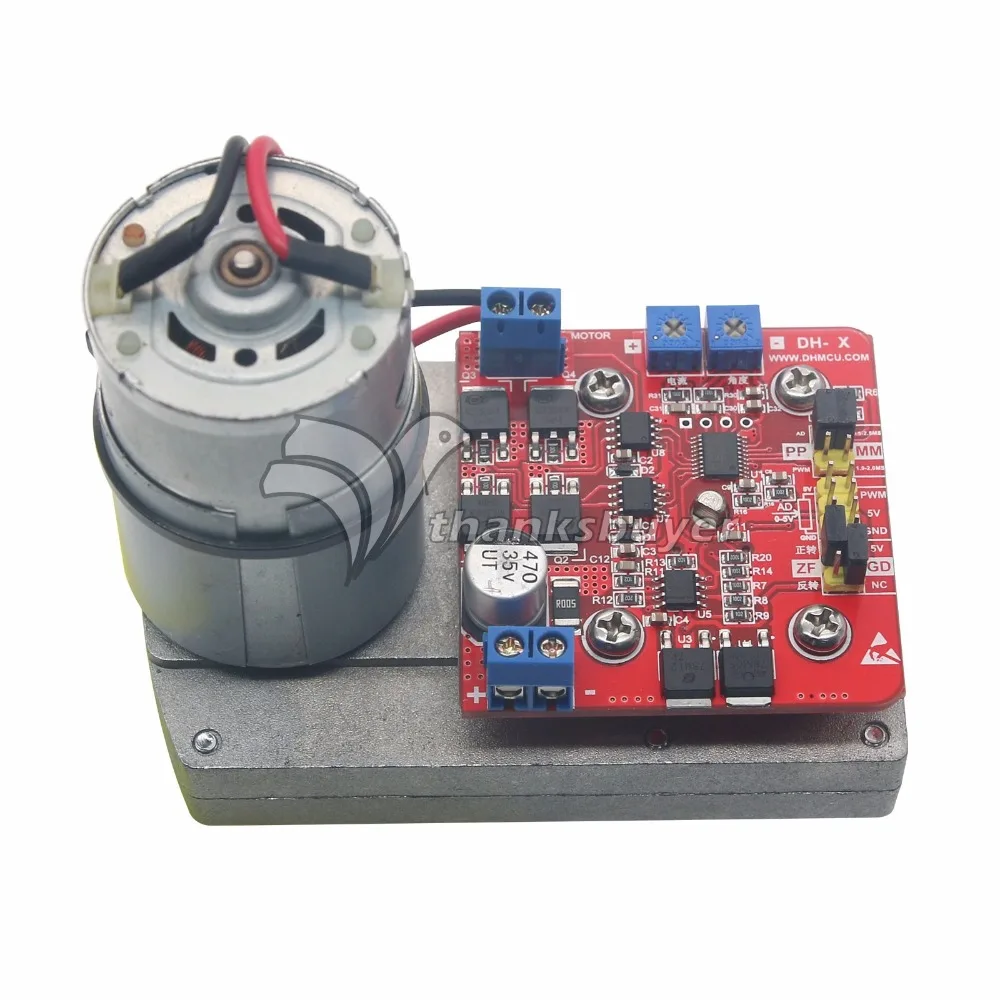

– The PP on board is to switch AD mode and PWM mode .
– ZF is CW and CCW .

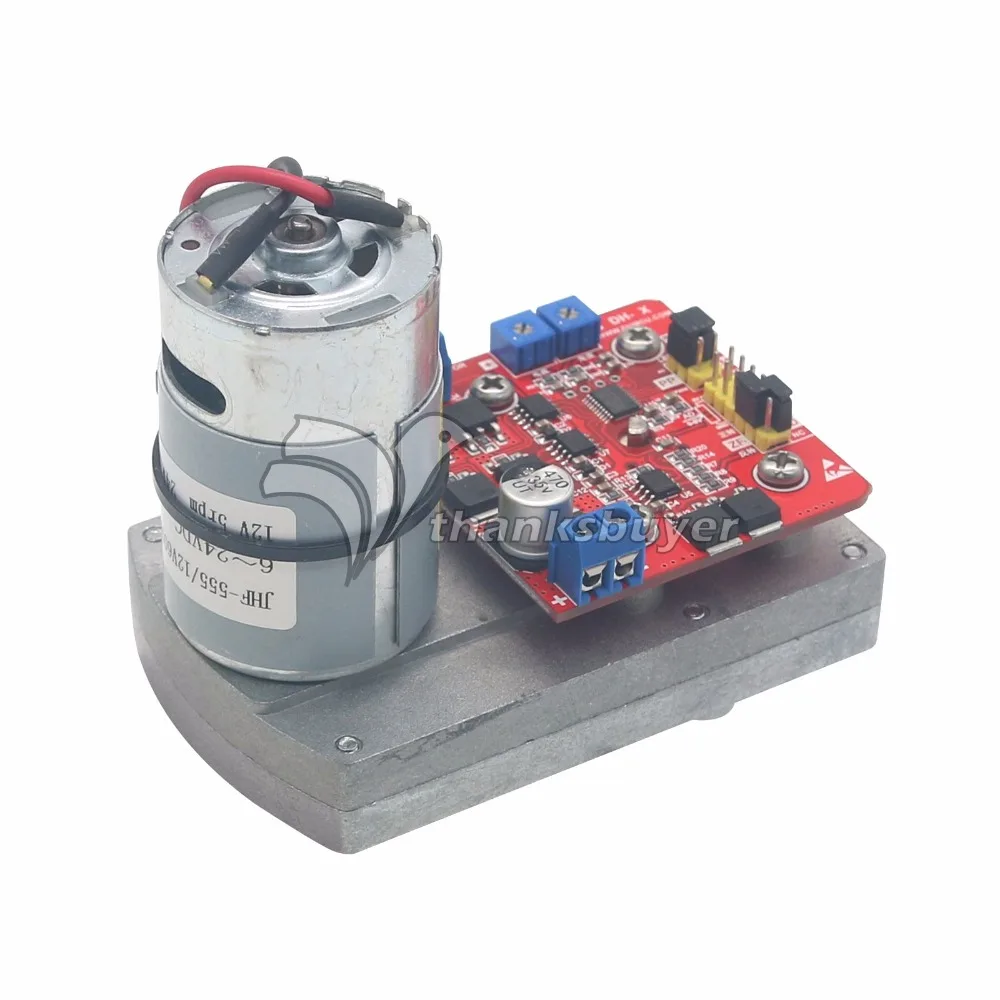

The appearance of 180kg.cm servo :
High Torque Servo DC12V 24V 380kg.cm Steel Gear for Robot Mechanical Arm
– Potentiometer control, remote control
– Current adjustment and angle adjustment
– CW and CCW switching, AD&PWM switching,pulse width 1-2ms&0.5-2.5ms
– Compatible with Futaba, JR, SANWA, Hitec,etc.
– Working voltage: DC12-24V
– No load current: <500mA
– Maximum torque(actual measurement): 380kg.cm(24V) ;1764N.cm(24V) ;90kg.cm(12V) ;882N.cm(12V)
– Angular velocity: 0.5s/60degree, when 24V;1.0s/60degree, when 12V
– Rotation angle: 330 degree MAX. (0-360 degree, adjustable)
– Input mode: PWMIN is PWM signal; ADIN is analog voltage signal(potentiometer)
– Pulse signal input range: 0.5ms-2.5ms for all "multi channal controller", 1ms-2ms for drone remote controller, SCM program, Arduino, etc.
– Voltage signal input range: 0-5V
– Control accuracy: 0.32 degree
– Weight: 530g
– Gear material" Steel
– Size: 95.5*60.5*102.6mm
– Application: Robot, mechanical arm, other high torque control area
– Power input: DC12-24V
– Motor output: 12-24V
– 1 x Servo
